Air classifier
  • Air classifier
  • Air classifier

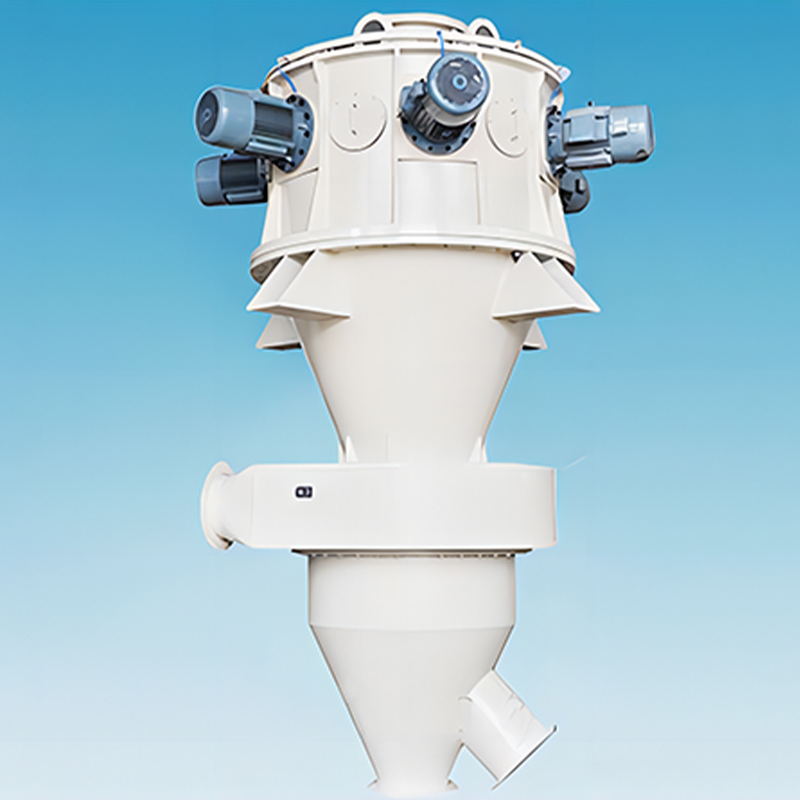

Air classifier

Product Particle Size: D50 ranges from 1 to 45 μm.
Classification Efficiency: 60% to 90%.
Production Capacity: 1 to 60 t/h.

Features: The material rises from the lower inlet of the classifier into the classification zone under the influence of the fan. The high-speed centrifugal force generated by the classifying impeller separates the material. Fine particles meeting the required particle size pass through the gaps between the classifying impeller blades and are collected in a cyclone separator or dust collector, while coarse particles descend to the discharge port for discharge. Suitable for fine classification of dry micron-sized products, it can classify spherical, flake, and needle-shaped particles, as well as particles of varying densities. The rotor speed can be controlled by a variable frequency drive, allowing for flexible adjustment of particle size distribution.

Applicable Industries: Food, Chemical, Building Materials, Metallurgy, Minerals, etc.

send inquiry
PREV：Air Classification MillNEXT：Fluidized bed jet mill
Product AdvantagesWorking PrincipleTechnical Specifications

Product Advantages

    1. Suitable for fine classification of dry micron-sized products, capable of classifying spherical, flake, and needle-shaped particles, as well as particles of varying densities.
    2. The particle size of the classified products can reach D97: 2 to 45 microns, with stepless adjustment, making it easy to change product types.
    3. The classification efficiency (extraction rate) is 60% to 80%. The efficiency is higher for materials with good flowability, while lower efficiency is achieved.
    4. A horizontal classifying turbine mechanism provides high speed and precise vertex cutting.
    5. Can be used in series with other grinding equipment, such as ball mills, vibrating mills, and Raymond mills, to form a closed-loop system.
    6. The control system utilizes a PLC with a real-time operating status display, ensuring easy operation.
    7. The system operates under negative pressure, with dust emissions exceeding 40 mg/m³. Equipment noise levels are kept below 75 dB(A) through soundproofing measures.
    8. An explosion-proof design is available, and it can be upgraded to a nitrogen circulation system to meet the processing needs of flammable, explosive, and oxidizable materials.

    Working Principle

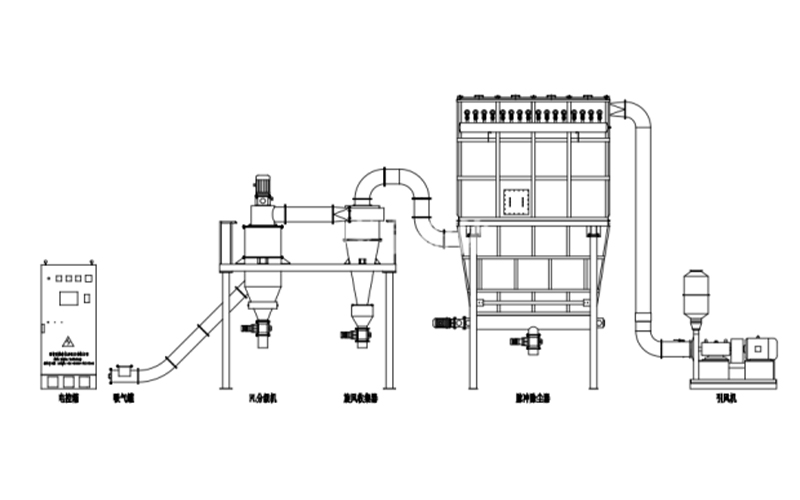

    Process flow:

    Technical Specifications

    FW/HTS Series Air Classifier - Multi-Rotor

    Parameter/Specification FW400/3 FW630/3 FW630/6 FW800/6 FW1000/G
    Handling Capacity (t/h) 0.2 - 1.5 1-5 3-10 5-15 8-30
    Product Particle Size D97 (μm) 3 - 45 3 - 45 3 - 45 5 - 45 5 - 45
    Classification Efficiency (%) 60 - 80 60 - 80 60 - 80 60 - 80 60 - 80
    Installed Power (kW) 60 - 90 135 - 155 250 - 290 290 - 390 500 - 580

    FW/HTS Series Air Classifier - Single - Rotor

    Parameter/Specification FW200 FW280 FW520 FW630 FW800
    Handling Capacity (kg/h) 10 - 100 20 - 200 100 - 1500 200 - 2500 400 - 4000
    Product Particle Size D97 (μm) 3 - 45 3 - 45 3 - 45 3 - 45 5 - 45
    Classification Efficiency (%) 60 - 80 60 - 80 60 - 80 60 - 80 60 - 80
    Installed Power (kW) 7-11 15 - 19 23 - 30 52 - 60 67 - 77

    FL/ITC Series Air Classifier - Multi - Rotor

    Parameter/Specification FL360/3 FL360/4 FL360/6 FL450/3 FL450/6
    Handling Capacity (kg/h) 2000 - 6000 4000 - 8000 3000 - 5000 3000 - 9000 5000 - 12000
    Product Particle Size D97 (μm) 5 - 150 5 - 150 5 - 150 8 - 150 8 - 150
    Classification Efficiency (%) 60 - 90 60 - 90 60 - 90 60 - 90 60 - 90
    Classification Motor Power (kW) 33 44 66 45 60

    FL/ITC Series Air Classifier - Single - Rotor

    Parameter/Specification FL200 FL300 FL360 FL450 FL600
    Handling Capacity (kg/h) 100 - 300 200 - 1000 300 - 1500 1000 - 3000 2000 - 6000
    Product Particle Size D97 (μm) 5 - 150 6 - 150 6 - 150 8 - 150 8 - 150
    Classification Efficiency (%) 60 - 90 60 - 90 60 - 90 60 - 90 60 - 90
    Classification Motor Power (kW) 4 7.5 11 15 22
