Disc jet mill
  • Disc jet mill

Disc jet mill

Product Particle Size: D50 is adjustable between 1.5 and 45 μm.

Features: The grinding chamber is CNC-machined from two solid steel plates, eliminating welds, rotating parts, and dead angles, making it easy to disassemble and clean, and ensuring high product purity. The adiabatic expansion of the gas accelerates and cools the particles, while high-speed particle collisions increase their temperature. However, the adiabatic expansion reduces this temperature, keeping the material temperature low throughout the pulverization process. This makes it particularly suitable for pulverizing heat-sensitive or low-melting-point materials. Cleaning-in-place (CIP) and sterilization-in-place (SIP) processes are easily implemented, making it suitable for the production of injectable-grade sterile drugs. The average particle size is small, typically less than 5 μm (with a pulverization ratio of 1 to 50), which also facilitates the breakup of agglomerates.

Applicable Industries: Fine chemicals, food, pharmaceuticals, and minerals, particularly suitable for processing heat-sensitive, high-purity, and magnetic materials.

send inquiry
PREV：Fluidized bed jet millNEXT：Vibrating mill
Product AdvantagesWorking PrincipleTechnical Specifications

Product Advantages

    1. Suitable for dry grinding of various materials with a Mohs hardness of 7 or less, especially for high-hardness, high-purity, and high-value-added materials.
    2. Product particle size (D50): Adjustable between 1.5 and 45 microns, with excellent particle shape and narrow particle size distribution, suitable for dispersing agglomerates.
    3. Low-temperature, media-free grinding, especially suitable for grinding heat-sensitive, low-melting-point, sugar-containing, and volatile materials.
    4. The entire system is enclosed, and the grinding process is achieved through collision between the materials themselves, unlike mechanical grinding, which relies on The material is crushed by the impact of blades or hammers, making the equipment wear-resistant and producing high-purity products.
    5. No dead spots, no risk of material backlog, easy explosion-proof verification, no safety hazards, extremely simple cleaning, and convenient disassembly and replacement of accessories.
    6. No transmission parts, a self-grading structure, and a large number of nozzles ensure high crushing efficiency.
    7. An explosion-proof design is available, and it can be upgraded to a nitrogen circulation system to meet the ultrafine crushing needs of flammable, explosive, and oxidizable materials.
    8. The control system is programmable for easy operation.

    Working Principle

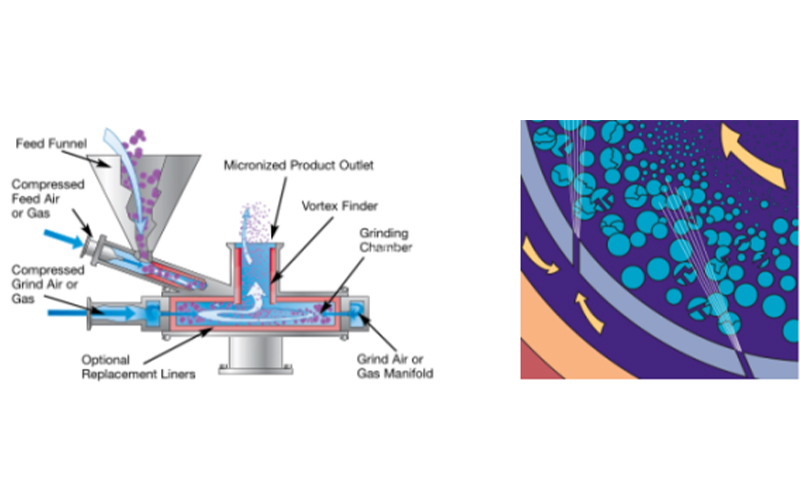

    The airflow mill, along with a cyclone separator, dust collector, and induced draft fan, forms a complete pulverizing system. After being cooled, filtered, and dried, compressed air is injected at high speed into the pulverizing chamber through multiple Laval nozzles. At the intersection of these multiple high-pressure airflows, the material is repeatedly pulverized by collision, friction, and shearing. The pulverized material follows the rising airflow through the high-speed rotating classifying wheel, where centrifugal and centripetal forces separate the coarse and fine materials. Fine particles that meet the required particle size pass through the grading zone and are collected in the cyclone separator and dust collector, while the coarse particles return to the pulverizing zone for further pulverization.

    Technical Specifications

    Parameter/Specification MQPQ3 MQPQ6 MQPQ10 MQPQ20 MQPQ40 MQPQ60 MQPQ90
    Feed Particle Size (mm) <5 <5 <5 <5 <5 <5 <5
    Product Particle Size D97 (μm) 8 - 150 8 - 150 8 - 150 8 - 150 10 - 150 10 - 150 10 - 150
    Production Capacity Range (kg/h) 5 - 100 10 - 200 20 - 400 50 - 800 150 - 1500 300 - 2000 400 - 6000
    Air Consumption (Nm³/min) 3 6 10 20 40 60 80
    Air Pressure (MPa) 0.7 - 0.85 0.7 - 0.85 0.7 - 0.85 0.7 - 0.85 0.7 - 0.85 0.7 - 0.85 0.7 - 0.85
    Installed Power (kW) 26 - 37 47 - 68 68 - 106 145 - 184 278 - 310 402 - 427 520 - 600
